A nomogram based on glycomic biomarkers in serum and clinicopathological characteristics for evaluating the risk of peritoneal metastasis in gastric cancer

Clinical Proteomics volume 17, Article number: 34 (2020) Cite this article

Abstract

Background

Peritoneal metastasis (PM) in gastric cancer (GC) remains an untreatable disease, and is difficult to diagnose preoperatively. Here, we aim to establish a novel prediction model.

Methods

The clinicopathologic characteristics of a cohort that included 86 non-metastatic GC patients and 43 PMGC patients from Zhongshan Hospital were retrospectively analysed to identify PM associated variables. Additionally, mass spectrometry and glycomic analysis were applied in the same cohort to find glycomic biomarkers in serum for the diagnosis of PM. A nomogram was established based on the associations between potential risk variables and PM.

Results

Overexpression of 4 N-glycans (H6N5L1E1: m/z 2620.93; H5N5F1E2: m/z 2650.98; H6N5E2, m/z 2666.96; H6N5L1E2, m/z 2940.08); weight loss ≥ 5 kg; tumour size ≥ 3 cm; signet ring cell or mucinous adenocarcinoma histology type; poor differentiation; diffuse or mixed Lauren classification; increased CA19-9, CA125, and CA724 levels; decreased lymphocyte count, haemoglobin, albumin, and pre-albumin levels were identified to be associated with PM. A nomogram that integrated with five independent risk factors (weight loss ≥ 5 kg, CA19-9 ≥ 37 U/mL, CA125 ≥ 35 U/mL, lymphocyte count < 2.0 * 10 ~ 9/L, and H5N5F1E2 expression ≥ 0.0017) achieved a good performance for diagnosis (AUC: 0.892, 95% CI 0.829–0.954). When 160 was set as the cut-off threshold value, the proposed nomogram represented a perfectly discriminating power for both sensitivity (0.97) and specificity (0.88).

Conclusions

The nomogram achieved an individualized assessment of the risk of PM in GC patients; thus, the nomogram could be used to assist clinical decision-making before surgery.

Introduction

Although the incidence and mortality rate of gastric cancer have both decreased worldwide, gastric cancer remains the fifth most common malignancy and the third leading cause of cancer deaths in the world [1]. Peritoneal metastasis (PM) is the most frequent and lethal form of distant metastasis in patients with gastric cancer [2, 3]. Until recently, PM of gastric origin was regarded as an untreatable condition with a poor quality of life and short life expectancy [4]. PM was associated with a reported average overall survival time of approximately 4-5 months after diagnosis [3], which is far worse than the median survival of patients without distant metastasis.

Although computed tomography (CT), positron emission tomography-computed tomography (PET-CT), and magnetic resonance imaging (MRI) technologies have greatly improved, predicting peritoneal metastasis preoperatively remains difficult in clinical practice. A meta-analysis consisting of 15 CT studies and 4 PET-CT studies indicated that CT and PET-CT had a fairly low sensitivity for detecting peritoneal metastasis (0.33 and 0.28, respectively) [5]. Due to the low detection rate by routine examination methods, patients with peritoneal metastasis have to undergo exploratory operations, thus suffering from both mental and physical trauma as well as economic burden. Therefore, it is tremendously important to identify the presence of peritoneal metastasis preoperatively with non-invasive methods.

Recent research has preliminarily demonstrated the predictive effects of several clinical pathological characteristics, including tumour size, differentiation, histology type, and tumour biomarkers [2, 6], as well as inflammation-associated factors, such as neutrophil, lymphocyte, C-reactive protein, and albumin levels, as well as neutrophil to lymphocyte ratio (NLR) [7, 8]. However, a single or even a few selected markers cannot define all the characteristics of peritoneal metastasis. Thus, systematic analysis of peritoneal dissemination is essential.

Serological glycomic profiling is an emerging non-invasive screening tool for finding potential biomarkers in a variety of cancers [9,10,11]. Serum glycan alteration has been reported to play an important role in regulating tumour proliferation, invasion, and metastasis [9, 12]. In our previous work, we identified several glycan biomarkers by using a modified mass spectrometry method (matrix-assisted laser desorption/ionization time-of-flight mass spectrometry: MALDI-TOF MS) for the early detection and progression surveillance of gastric cancer [13].

In this study, we aimed to discover peritoneal metastasis associated glycan biomarkers by using glycomics analysis based on the MALDI-TOF MS method and clinicopathologic characteristics to establish a nomogram for predicting the risk of peritoneal metastasis in gastric cancer patients.

Materials and methods

Patient selection

The clinical and pathological data of a consecutive cohort of 728 gastric cancer patients who were initially treated in the general department of Zhongshan Hospital from April to November 2015 were retrospectively collected. Patients with distant metastasis at other sites (except for peritoneal metastasis) and with three or more missing clinical data were excluded. We then applied a 2:1 ratio of non-distant metastasis patients (n = 86) and peritoneal metastasis patients (n = 43) for further examination and analysis. Patients with peritoneal metastasis were consecutively selected. The exclusion criteria and study cohort flow diagram are summarized in Fig. 1. The use of human serum samples and clinical data was approved by the ethics committee of Zhongshan Hospital, Fudan University and was performed in accordance with the ethical standards presented in the 1964 Declaration of Helsinki and its later amendments. Informed written consent from all participants was acquired.

Fig. 1
figure 1

Diagram of study population and cohort selection, with exclusion criteria described on the right-hand side of the diagram. AFP alpha-fetoprotein, CEA carcinoembryonic antigen, CA19-9, CA125, CA724 carbohydrate antigen 19-9, 125, and 724

Full size image

Diagnosis of peritoneal metastasis

Every patient received a CT or PET-CT scan before surgery. When suspected peritoneal metastasis was reported in the examination, our multidisciplinary team (MDT) then discussed the case. If the evidence of PM was regarded as sufficient by the MDT, then the diagnosis was made; in contrast, if the evidence was not sufficient, diagnostic laparoscopy was used. When peritoneal metastasis was not reported in the examination, exploratory laparotomy or diagnostic laparoscopy accompanied by peritoneal lavage and exfoliative cytologic examination was applied before gastrectomy was performed.

Mass spectrometry and Glycomic analysis

N-glycans were released from serum glycoproteins and derived by ethyl esterification reagent according to the method described in previous study [13]. Briefly, 10 μL serum was denatured in 30 μL denaturation buffer with 2% SDS, followed by digestion in 20 μL released mixture with 0.5 mU PNGase F (Roche Diagnostics, Mannheim, GER). The released glycan sample was added into tubes filled with 200 μL freshly prepared derivatization reagent (250 mM EDC and 250 mM HOBt in ethanol). Before MS analysis, the obtained oligosaccharides were purified by Sepharose HILIC SPE (45–165 μm, GE Healthcare, Uppsala, SE). Ethyl esterfied N-glycans were subjected to MS analysis by AXIMA Resonance MALDI-TOF MS (Shimadzu Corp, Kyoto, JPN) equipped with a 337 nm nitrogen laser in reflector positive ionization mode. Samples were analyzed in triplicate. The m/z range was monitored to span from 500 to 5000. The MALDI-TOF MS data were pre-processed, normalized and extracted using the software of Progenesis MALDI (Nonlinear Dynamics Ltd, Newcastle Upon Tyne, UK). The GlycoWorkbench software was used for the annotation of MS spectra (H = hexose, N = N-acetylhexosamine, F = fucose, L = α 2,3-sialic acid, E = α 2,6-sialic acid).

Statistical analysis

Clinicopathologic characteristics between non-distant metastasis and peritoneal metastasis groups were compared by using Pearson’s χ2 test for categorical variables and Mann–Whitney test for continuous variables. A forest plot was created according to the result of multivariable logistic analysis. A nomogram was created with R software (R Studio, Boston, MA, USA) using the ‘rms’ package to be a new prediction model. A calibration plot was generated to examine the performance characteristics of the nomogram. Receiver operating characteristic (ROC) curve was used to compare the sensitivity and specificity for the prediction of PM by the parameters. Area under the curve (AUC) was used to judge the predictive accuracy of different parameters. A two-sided significance level of 0.05 was used in all statistical tests. Statistical analysis were performed using SPSS package (Version 22, SPSS Inc., Chicago, IL, USA) and R package.

Results

Patient characteristics and diagnostic value of CT or PET-CT

A total of 728 gastric cancer patients, which included 663 (91%) non-metastatic patients and 65 (9%) distant metastatic patients, were consecutively treated in the General Department of Zhongshan Hospital from April 2015 to December 2015. The TNM stage and distant metastasis details of the patients are depicted in Additional file 1: Table S1. Notably, peritoneal metastasis accounted for up to 72% (47/65) of all distant metastasis patients.

Among the 47 patients with peritoneal metastasis, 25 patients received a CT scan, 12 patients received a PET-CT scan, and 10 patients underwent both examinations preoperatively. Nine cases of PM were detected by CT scans, with a detection rate of 25.7% (9/35), and ten cases were detected by PET-CT scans, with a detection rate of 45.5% (10/22). Importantly, all metastatic cases detected by imageological examination were finally confirmed by surgery with 100% accuracy. The results indicated that CT or PET-CT had a low sensitivity but extraordinarily high accuracy for peritoneal metastasis diagnosis. Due to the low detection rate of the CT or PET-CT scan, more than 60% (29/47) of patients had to undergo invasion examinations. Among them, the majority of patients (28/29) were observed to have macroscopic lesions with peritoneal metastasis.

After 2:1 cohort matching, 86 non-metastatic patients consecutively treated from May to June and 43 patients with peritoneal metastasis were finally recruited for further analysis.

Glycomics analysis of mass spectrometry related to peritoneal metastasis

The N-glycomic profiles were identified by MALDI-MS according to our previous study [13]. Based on the comprehensive glycomic analysis, we totally examined 81 N-glycans (peaks) in all serum samples. The typical glycomic profiles and the glycan structures and compositions were presented in Additional file 1: Figure S1 and Table S2.

The results of the individual N-glycan structure abundance analysis showed that 22 types of glycans displayed significant differences between non-metastatic and peritoneal metastasis gastric cancer (P < 0.05) (Additional file 1: Table S3). The N-glycans demonstrating both P < 0.0001 and AUC > 0.7 (H6N5L1E1: m/z 2620.93; H5N5F1E2: m/z 2650.98; H6N5E2, m/z 2666.96; H6N5L1E2, m/z 2940.08) were considered valuable for predicting peritoneal metastasis and were included for further analysis (Fig. 2a–d).

Fig. 2
figure 2

Representative mass spectra, scatter plot and ROC (Receiver Operating Characteristic) curve analysis of top four most prominently different expression of glycoforms between non-metastatic GC patients and GC patients with peritoneal metastasis. a 2620.93 m/z (H6N5L1E1). b 2650.98 m/z (H5N5F1E2). c 2666.96 m/z (H6N5E2). d 2940.08 m/z (H6N5L1E2) were identified. GC gastric cancer, PM peritoneal metastasis, AUC area under ROC curve, H hexose, N N-acetylhexosamine, F fucose, L α 2,3-sialic acid, E α 2,6-sialic acid. ***P < 0.001

Full size image

Univariable and multivariable logistic analysis for peritoneal metastasis

To identify the odds ratio (OR) and 95% confidence interval (CI) of the risk factors for peritoneal metastasis in gastric cancer patients, univariable and multivariable analysis were conducted using a logistic regression model. Weight loss ≥ 5 kg (excluding the reason for gastroduodenal obstruction), tumour size ≥ 3 cm, signet ring cell or mucinous adenocarcinoma histology type, poor differentiation, diffuse or mixed Lauren classification, increased carbohydrate antigens (CA19-9, CA125, CA724), decreased lymphocyte count, and haemoglobin, albumin, pre-albumin, and increased N-glycan levels were identified as risk factors for peritoneal metastasis (Table 1). All the potential risk factors with P < 0.05 identified from the univariate survival analysis were included in the multivariable logistic analysis. Weight loss ≥ 5 kg (OR: 22.00, 95% CI 3.84–126.14, P = 0.001), CA19-9 ≥ 37 U/mL (OR: 6.10, 95% CI 1.24–30.06, P = 0.03), CA125 ≥ 35 U/mL (OR: 5.82, 95% CI 1.17–29.04, P = 0.03), lymphocyte count < 2.0 * 10–9/L (OR: 7.54, 95% CI 1.32–43.12, P = 0.02), and H5N5F1E2 (m/z 2650.98) expression ≥ 0.0017 (OR: 29.79, 95% CI 2.45–338.63, P = 0.01) were identified as independent risk factors for peritoneal metastasis after the adjustment of covariates (Fig. 3).

Table 1 Univariate logistic analysis for peritoneal metastasis of gastric cancer
Full size table

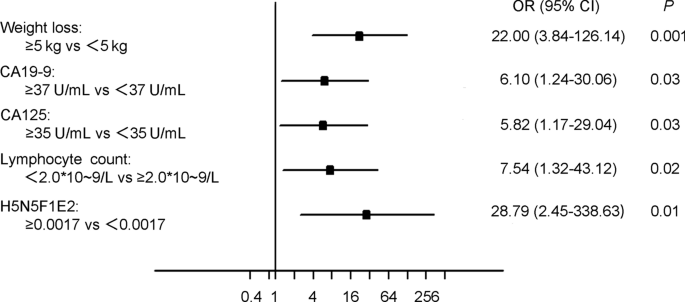

Fig. 3
figure 3

Forest Plot of multivariable logistic analysis identified independent risk factors for peritoneal metastasis in gastric cancer patients. CA19-9, CA125, CA724: carbohydrate antigen 19-9, 125, and 724; H hexose, N N-acetylhexosamine, F fucose, L α 2,3-sialic acid, E α 2,6-sialic acid

Full size image

Nomogram for predicting the risk of peritoneal metastasis

To provide a prediction model for peritoneal metastasis in gastric cancer patients before surgery, a nomogram based on the results from the stepwise logistic regression model was created to provide a quantitative method for better prediction (Fig. 4a).

Fig. 4
figure 4

Establishment and validation of nomogram to predict the risk of peritoneal metastasis in gastric cancer patients. a A nomogram integrating with weight loss, CA19-9, CA-125, lymphocytes count number, and H5N5F1E2 level was created to predict risk of peritoneal metastasis. b Calibration curve for nomogram-predicted and actual probability of having peritoneal metastasis. c Sensitivity and specificity for predicting peritoneal metastasis of nomogram model and other single variables was compared by the area under the Receiver operating characteristic (ROC) curve (AUC) and tested by Delong. Delong. Clarke-Pearson test. CA19-9, CA125, CA724: carbohydrate antigen 19-9, 125, and 724; H hexose, N N-acetylhexosamine, F fucose, L α 2,3-sialic acid, E α 2,6-sialic acid. ***P < 0.001

Full size image

In the nomogram, each variable was represented by a different point, which was listed in Additional file 1: Table S4. The total number of points was calculated by adding the point of each variable, and a higher total number of points represented a higher risk of peritoneal metastasis.

Validation of the prediction model

The prediction model of the nomogram was validated by measuring the calibration and AUC. The calibration was evaluated with a calibration curve, in which patients were grouped by predicted risk, which was then plotted as actual vs. predicted risk. As shown in Fig. 4b, the calibration plot demonstrated that the nomogram performed well compared with the ideal prediction model. The ROC curve showed that the nomogram (AUC: 0.892, 95% CI 0.829-0.954) displayed the best sensitivity and specificity for predicting peritoneal metastasis compared with any other single variable (P < 0.001) (Fig. 4c).

Illustration for clinical practice

The number of nomogram points was significantly higher in patients with peritoneal metastasis than in patients without distant metastasis (Fig. 5a). Optimal cut-off threshold values were determined at the point on the ROC curve at which the Youden’s index (sensitivity + specificity − 1) was maximal [8]. The result showed that when 160 was set as the cut-off value, the nomogram had the best discriminating power considering both sensitivity (0.97) and specificity (0.88) (Fig. 5b). Therefore, patients could be stratified into a low-risk group (total number of nomogram points ≤ 160) and a high-risk group (> 160). Only 12% of patients without PM were in the high-risk group (false-positive rate); however, the proportion increased to 97% in PM patients (positive rate) (Fig. 5c). Furthermore, the proportion of PM increased from 2% in the low-risk group to 78% in the high-risk group (Fig. 5d).

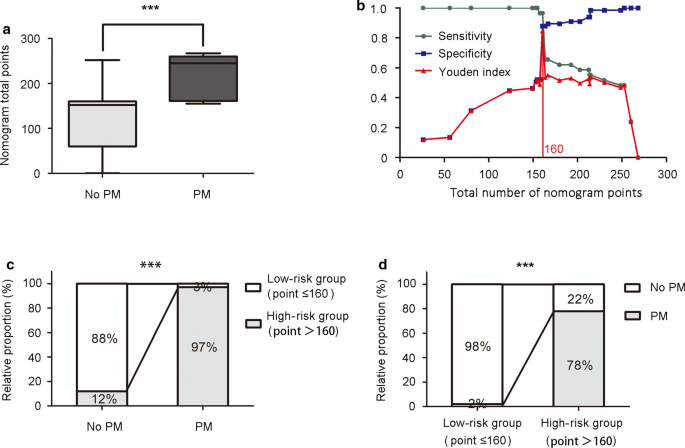

Fig. 5
figure 5

Clinical significance of nomogram to predict peritoneal metastasis. a Total number of nomogram points in non-peritoneal metastasis (Mean ± SEM: 118.6 ± 7.93) and peritoneal metastasis (Mean ± SEM: 216.4 ± 8.77) patients were demonstrated by box plot. The box plot shows the full range of variation (error bars: min and max) with the line representing median. b When 160 was set as the cut-off value determined by ROC analysis and Youden index, nomogram had the best sensitivity (0.97) and specificity (0.88). Youden index = Sensitivity + Specificity − 1. c Positive rate (97%), negative rate (88%), false positive rate (12%), and false negative rate (3%) of the nomogram stratified into low-risk group (total number of nomogram points ≤ 160) and high-risk group (total number of nomogram points > 160). d Proportion of patients with or without peritoneal metastasis was demonstrated in low-risk group and high-risk group. PM peritoneal metastasis; ***P < 0.001

Full size image

Discussion

Peritoneal metastasis is regarded as the most prevalent incurable cause of gastric cancer. In our 728 consecutive gastric cancer patients, peritoneal metastasis was also identified as the most common mode of distant metastasis (47/65: 72%). In patients with peritoneal metastasis, although controversy regarding surgical application still remains, palliative chemotherapy is preferred [14]. From this point of view, peritoneal metastasis needs to be precisely diagnosed before surgery or at the beginning of surgery in order for surgeons to determine the most appropriate therapeutic approach and to avoid unnecessary extensive surgery [6].

However, in clinical practice, it is often difficult to make diagnosis of peritoneal metastasis by conventional imaging modalities, such as CT, PET-CT or MRI, due to their limitations in terms of detection sensitivity [5]. Consistent with previous studies showing that peritoneal metastasis is one of the limitations of CT or PET-CT for predicting the stage of gastric cancer preoperatively [15, 16], CT had a very low sensitivity for detecting peritoneal metastasis (25.7%), and PET-CT achieved a moderately higher sensitivity of 45.5% in our study, although both showed good performance in terms of diagnostic accuracy (100%). CT had an advantage in terms of diagnostic performance with lesions of 10 mm or more in diameter; however, the majority of peritoneal metastasis cases showed numerous miliary nodules with diffuse and random distribution in the uneven shape of the peritoneal cavity or omental burse, making it difficult for the entire cavity to be thoroughly inspected. The function of PET-CT depends on the cellular FDG (18F-fluoro-2-deoxyglucose) uptake, which is predominantly related to glucose transporter 1 (GLUT1) expression [17]. GLUT1 is usually overexpressed in malignant tissues, leading to the intracellular accumulation of FDG, which can then be visualized by PET-CT [18]. However, GLUT1 expression varies greatly in different gastric cancer histologies. Signet ring cell carcinoma, mucinous adenocarcinoma, or poorly differentiated adenocarcinoma, which are the most common histological types of peritoneal metastasis, show very low positive values for GLUT1 expression [19]. Consequently, new method are urgently needed to improve the preoperative diagnosis of peritoneal metastasis.

Clinicopathologic characteristics and serum biomarkers were first explored to distinguish peritoneal metastasis. A large tumour size, diffuse types, poor differentiation, or mucinous adenocarcinoma histopathological type have been reported to be positively associated with peritoneal metastasis [8], which is consistent with our results. The most frequently used tumour biomarkers, such as CA19-9 [20], CA12-5, and CA-724 [2], have also been identified to provide additional information for the diagnosis of peritoneal metastasis. In our study, we found a significant increased risk of peritoneal metastasis in patients with elevated serum biomarkers. CA12-5 has been reported to be expressed by the epithelium of the mesothelium lining body cavities (pleural, peritoneal, and pelvic cavities) [21]. As a result, in the case of peritoneal metastasis, the overexpression of CA12-5 is caused not only by tumour burden but also, more importantly, by peritoneal or endometrial inflammation induced by tumour dissemination to the mesothelium lining body cavities [22, 23]. CA724 has been found to be elevated in adenocarcinomas, including gastric cancer, especially in the mucinous sub-type [24]. Peritoneal metastasis in gastric cancer mainly occurs in histological types of mucinous adenocarcinoma or signet ring cell adenocarcinoma, both of which are rich in mucus. This may explain why patients with peritoneal metastasis usually have elevated CA724 levels.

Recently, some markers reflecting the systemic inflammatory response or immune responses of the host in patients with cancer have been indicated to be associated with cancer metastasis [25, 26]. A correlation between an increase in serum CRP level or a decrease in serum albumin levels with the presence of peritoneal metastasis has been discovered [7, 8]. Increased neutrophil counts, decreased lymphocyte counts, and the neutrophil/lymphocyte ratio (NLR) have also been demonstrated to facilitate the diagnosis of peritoneal metastasis [7]. Data from our study revealed that a decreased lymphocyte count, an increased NLR, a decreased haemoglobin level, and a decreased albumin or pre-albumin levels in preoperative serum were all associated with peritoneal metastasis. However, only lymphocyte count remained significant in the multivariable logistic analysis, which was consistent with previous results showing that using lymphocyte count alone is superior to NLR for the diagnosis of peritoneal metastasis [8]. Lymphocytes have been reported to reflect the defensive activity of the host against tumours [27]; thus, a reduced number of lymphocytes may facilitate tumour progression.

In addition to these clinicopathologic characteristics and laboratory parameters reported previously, we first identified PM specifically related serum glycans by MALDI-TOF MS and glycomic profile analysis. Glycosylation is a kind of posttranslational modification in the majority of proteins to modulate and control their biological roles. Abnormal glycosylation is associated with tumour progression and metastasis in a variety of cancers [28,29,30,31]. It is worth noting that the alteration of N-glycans is implicated in the modulation of cell-ECM (extracellular matrix) associations as well as in cell–cell adhesion and migration, which are closely related to the metastasis potential of tumours [32]. The role of glycosylation modifications has also been associated with peritoneal metastasis. For example, mesothelin-MUC16 binding that facilitates peritoneal metastasis in ovarian cancers has been shown to be dependent on N-glycan [33]. As a result, tumour metastasis-associated aberrations in glycan structures may provide a compelling rationale for the discovery of new biomarkers. To date, glycan alterations in gastric cancer have only been reported in very few studies, and most of the studies identified limited N-glycans for providing comprehensive glycomic analysis due to the insufficient sensitivity of the methods [34, 35]. In this study, we applied MALDI-TOF MS, a highly developed and powerful technology, for the qualitative and quantitative analysis of glycans [10, 36]. Compared with non-metastatic serum samples, 22 N-glycans showed significant difference in PM samples. Among these N-glycans, the abundances of 9 N-glycans (H5N4FIL1E1, H6N6E1, H6N5L2, H6N5L1E1, H5N5F1E2, H6N5E2, H6N5L2E1, H6N5L1E2, H6N5E3) containing sialylation were remarkably higher in PM samples. Sialic acids were reported to play important roles in cell–cell interaction, recognition and immunological response [37], as well as specific biomarkers for tumor progression [38]. Besides, two of 22 N-glycans were high mannose glycans (H6N2, H8N2), which were reported to be abundantly expressed in metastatic cholangiocarcinoma, and promote metastasis of cholangiocarcinoma by enhancing the ability to translocate, invade surrounding basement membrane matrix, and migrate [39]. We also found 2 of 22 N-glycans were bisecting GlcNAc (H5N5F2, H5N5E1AC2), which showed significantly decreased levels in PM. N-glycans with bisecting GlcNAc have been identified to be valuable for detecting the early peritoneal metastasis in ovarian cancer [40].

Though these PM-associated variables were identified, the diagnostic accuracy of each single parameter was underpowered. Some variables, such as lymphocyte count and H5N5F1E2 expression level, achieved good sensitivity but had low specificity. However, others showed better specificity than sensitivity, such as weight loss, CA19-9 and CA-125 levels. Thus, a nomogram was introduced here to build a statistical model for evaluating the risk of peritoneal metastasis. Many investigations have shown that the nomogram is a visualized graphical statistical model for the individualized assessment of the quantified risk of clinical events by a variety of factors [41, 42]. In our study, as illustrated in Fig. 4, a nomogram was established to predict the risk of peritoneal metastasis to facilitate clinical decision-making. If a patient lost less than 5 kg of body weight, and had elevated CA199 and CA-125 levels but did not have an abnormal decreased lymphocyte count and increased H5N5F1E2 expression (total points = 0 + 54 + 53 + 0 + 0 = 107), then the risk of peritoneal metastasis was less than 5%. If the patients had increased H5N5F1E2 expression, then the points reached 207 (107 + 100 = 207), with a corresponding risk of approximately 50%. We further stratified patients into a low-risk group (total number of nomogram points ≤ 160) and a high-risk group (total number of nomogram points > 160) according to the ROC analysis. Hence, surgeons can make treatment plans with the visual assistance of the nomogram preoperatively.

Conclusions

Patients with gastric cancer showed an increased risk of developing peritoneal metastasis with more than 5 kg of body weight loss, elevated CA19-9 and CA-125 levels, decreased lymphocyte counts, and increased H5N5F1E2 expression. By incorporating these five variables, a nomogram predicting peritoneal metastasis was developed. Then, the incidence of peritoneal metastasis in an individual gastric cancer patient could be estimated. However, further internal and external validation of the application of the nomogram model is required.

Availability of data and materials

All the data, analytic methods, and study materials supporting the findings of this study are available from the corresponding authors upon reasonable request.

Abbreviations

GC:

Gastric cancer

PM:

Peritoneal metastasis

MALDI-TOF MS:

Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry

CA:

Carbohydrate antigens

CRP:

C-reactive protein

NLR:

Neutrophil to lymphocyte ratio

ROC:

Receiver operating characteristic curve

AUC:

Area under ROC curve

H:

Hexose

N:

N-Acetylhexosamine

F:

Fucose

L:

α 2,3-sialic acid

E:

α 2,6-Sialic acid

OR:

Odds ratio

CI:

Confidence interval

FDG:

F-Fluoro-2-deoxyglucose

GLUT1:

Glucose transporter 1

References

  1. Siegel RL, Miller KD, Jemal A. Cancer statistics, 2017. CA Cancer J Clin. 2017;67:7–30.

    Article  PubMed  Google Scholar

  2. Emoto S, Ishigami H, Yamashita H, Yamaguchi H, Kaisaki S, Kitayama J. Clinical significance of CA125 and CA72-4 in gastric cancer with peritoneal dissemination. Gastric Cancer. 2012;15:154–61.

    Article  CAS  PubMed  Google Scholar

  3. Kikuchi H, Kamiya K, Hiramatsu Y, Miyazaki S, Yamamoto M, Ohta M, Baba S, Konno H. Laparoscopic narrow-band imaging for the diagnosis of peritoneal metastasis in gastric cancer. Ann Surg Oncol. 2014;21:3954–62.

    Article  PubMed  Google Scholar

  4. Thomassen I, van Gestel YR, van Ramshorst B, Luyer MD, Bosscha K, Nienhuijs SW, Lemmens VE, de Hingh IH. Peritoneal carcinomatosis of gastric origin: a population-based study on incidence, survival and risk factors. Int J Cancer. 2014;134:622–8.

    Article  CAS  PubMed  Google Scholar

  5. Wang Z, Chen JQ. Imaging in assessing hepatic and peritoneal metastases of gastric cancer: a systematic review. BMC Gastroenterol. 2011;11:19.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  6. Kagawa S, Shigeyasu K, Ishida M, Watanabe M, Tazawa H, Nagasaka T, Shirakawa Y, Fujiwara T. Molecular diagnosis and therapy for occult peritoneal metastasis in gastric cancer patients. World J Gastroenterol. 2014;20:17796–803.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  7. Nakayama Y, Gotohda N, Shibasaki H, Nomura S, Kinoshita T, Hayashi R. Usefulness of the neutrophil/lymphocyte ratio measured preoperatively as a predictor of peritoneal metastasis in patients with advanced gastric cancer. Surg Today. 2014;44:2146–52.

    Article  PubMed  Google Scholar

  8. Ohi M, Mori K, Toiyama Y, Mohri Y, Okigami M, Yasuda H, Saigusa S, Tanaka K, Inoue Y, Kusunoki M. Preoperative prediction of peritoneal metastasis in gastric cancer as an indicator for neoadjuvant treatment. Anticancer Res. 2015;35:3511–8.

    CAS  PubMed  Google Scholar

  9. Pinho SS, Carvalho S, Marcos-Pinto R, Magalhaes A, Oliveira C, Gu J, Dinis-Ribeiro M, Carneiro F, Seruca R, Reis CA. Gastric cancer: adding glycosylation to the equation. Trends Mol Med. 2013;19:664–76.

    Article  CAS  PubMed  Google Scholar

  10. Park HM, Hwang MP, Kim YW, Kim KJ, Jin JM, Kim YH, Yang YH, Lee KH, Kim YG. Mass spectrometry-based N-linked glycomic profiling as a means for tracking pancreatic cancer metastasis. Carbohydr Res. 2015;413:5–11.

    Article  CAS  PubMed  Google Scholar

  11. Kamiyama T, Yokoo H, Furukawa J, Kurogochi M, Togashi T, Miura N, Nakanishi K, Kamachi H, Kakisaka T, Tsuruga Y, et al. Identification of novel serum biomarkers of hepatocellular carcinoma using glycomic analysis. Hepatology. 2013;57:2314–25.

    Article  CAS  PubMed  Google Scholar

  12. Kyselova Z, Mechref Y, Al Bataineh MM, Dobrolecki LE, Hickey RJ, Vinson J, Sweeney CJ, Novotny MV. Alterations in the serum glycome due to metastatic prostate cancer. J Proteome Res. 2007;6:1822–32.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. Qin R, Zhao J, Qin W, Zhang Z, Zhao R, Han J, Yang Y, Li L, Wang X, Ren S, et al. Discovery of non-invasive glycan biomarkers for detection and surveillance of gastric cancer. J Cancer. 2017;8:1908–16.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  14. Association JGC. Japanese gastric cancer treatment guidelines 2010 (ver. 3). Gastric Cancer. 2011;14:113–23.

    Article  Google Scholar

  15. Lim JS, Kim MJ, Yun MJ, Oh YT, Kim JH, Hwang HS, Park MS, Cha SW, Lee JD, Noh SH, et al. Comparison of CT and 18F-FDG pet for detecting peritoneal metastasis on the preoperative evaluation for gastric carcinoma. Korean J Radiol. 2006;7:249–56.

    Article  PubMed  PubMed Central  Google Scholar

  16. Chen J, Cheong JH, Yun MJ, Kim J, Lim JS, Hyung WJ, Noh SH. Improvement in preoperative staging of gastric adenocarcinoma with positron emission tomography. Cancer. 2005;103:2383–90.

    Article  PubMed  Google Scholar

  17. Yamada A, Oguchi K, Fukushima M, Imai Y, Kadoya M. Evaluation of 2-deoxy-2-[18F]fluoro-d-glucose positron emission tomography in gastric carcinoma: relation to histological subtypes, depth of tumor invasion, and glucose transporter-1 expression. Ann Nucl Med. 2006;20:597–604.

    Article  CAS  PubMed  Google Scholar

  18. Kawamura T, Kusakabe T, Sugino T, Watanabe K, Fukuda T, Nashimoto A, Honma K, Suzuki T. Expression of glucose transporter-1 in human gastric carcinoma: association with tumor aggressiveness, metastasis, and patient survival. Cancer. 2001;92:634–41.

    Article  CAS  PubMed  Google Scholar

  19. Shimada H, Okazumi S, Koyama M, Murakami K. Japanese Gastric Cancer Association Task Force for Research Promotion: clinical utility of (1)(8)F-fluoro-2-deoxyglucose positron emission tomography in gastric cancer. A systematic review of the literature. Gastric Cancer. 2011;14:13–21.

    Article  PubMed  Google Scholar

  20. Hwang GI, Yoo CH, Sohn BH, Shin JH, Park YL, Kim HD, Kim YS, Han WK, Pae WK. Predictive value of preoperative serum CEA, CA19-9 and CA125 levels for peritoneal metastasis in patients with gastric carcinoma. Cancer Res Treat. 2004;36:178–81.

    Article  PubMed  PubMed Central  Google Scholar

  21. Bafna S, Kaur S, Batra SK. Membrane-bound mucins: the mechanistic basis for alterations in the growth and survival of cancer cells. Oncogene. 2010;29:2893–904.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  22. Huang CJ, Jiang JK, Chang SC, Lin JK, Yang SH. Serum CA125 concentration as a predictor of peritoneal dissemination of colorectal cancer in men and women. Medicine (Baltimore). 2016;95:e5177.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  23. Nakata B, Hirakawa YSCK, Kato Y, Yamashita Y, Maeda K, Onoda N, Sawada T, Sowa M. Serum CA 125 level as a predictor of peritoneal dissemination in patients with gastric carcinoma. Cancer. 1998;83:2488–92.

    Article  CAS  PubMed  Google Scholar

  24. Fayed ST, Ahmad SM, Kassim SK, Khalifa A. The value of CA 125 and CA72-4 in management of patients with epithelial ovarian cancer. Dis Markers. 1998;14:155–60.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  25. Coffelt SB, de Visser KE. Cancer: inflammation lights the way to metastasis. Nature. 2014;507:48–9.

    Article  CAS  PubMed  Google Scholar

  26. Coussens LM, Werb Z. Inflammation and cancer. Nature. 2002;420:860–7.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. Halazun KJ, Aldoori A, Malik HZ, Al-Mukhtar A, Prasad KR, Toogood GJ, Lodge JP. Elevated preoperative neutrophil to lymphocyte ratio predicts survival following hepatic resection for colorectal liver metastases. Eur J Surg Oncol. 2008;34:55–60.

    Article  CAS  PubMed  Google Scholar

  28. Mechref Y, Hu Y, Garcia A, Zhou S, Desantos-Garcia JL, Hussein A. Defining putative glycan cancer biomarkers by MS. Bioanalysis. 2012;4:2457–69.

    Article  CAS  PubMed  Google Scholar

  29. Haakensen VD, Steinfeld I, Saldova R, Shehni AA, Kifer I, Naume B, Rudd PM, Borresen-Dale AL, Yakhini Z. Serum N-glycan analysis in breast cancer patients–Relation to tumour biology and clinical outcome. Mol Oncol. 2016;10:59–72.

    Article  CAS  PubMed  Google Scholar

  30. Guo HB, Zhang Y, Chen HL. Relationship between metastasis-associated phenotypes and N-glycan structure of surface glycoproteins in human hepatocarcinoma cells. J Cancer Res Clin Oncol. 2001;127:231–6.

    Article  CAS  PubMed  Google Scholar

  31. Leijon H, Kaprio T, Heiskanen A, Satomaa T, Hiltunen JO, Miettinen MM, Arola J, Haglund C. N-Glycomic profiling of pheochromocytomas and paragangliomas separates metastatic and nonmetastatic disease. J Clin Endocrinol Metab. 2017;102:3990–4000.

    Article  PubMed  PubMed Central  Google Scholar

  32. Gu J, Taniguchi N. Potential of N-glycan in cell adhesion and migration as either a positive or negative regulator. Cell Adh Migr. 2008;2:243–5.

    Article  PubMed  PubMed Central  Google Scholar

  33. Gubbels JA, Belisle J, Onda M, Rancourt C, Migneault M, Ho M, Bera TK, Connor J, Sathyanarayana BK, Lee B, et al. Mesothelin-MUC16 binding is a high affinity, N-glycan dependent interaction that facilitates peritoneal metastasis of ovarian tumors. Mol Cancer. 2006;5:50.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  34. Bones J, Byrne JC, O’Donoghue N, McManus C, Scaife C, Boissin H, Nastase A, Rudd PM. Glycomic and glycoproteomic analysis of serum from patients with stomach cancer reveals potential markers arising from host defense response mechanisms. J Proteome Res. 2011;10:1246–65.

    Article  CAS  PubMed  Google Scholar

  35. Liu L, Yan B, Huang J, Gu Q, Wang L, Fang M, Jiao J, Yue X. The identification and characterization of novel N-glycan-based biomarkers in gastric cancer. PLoS ONE. 2013;8:e77821.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  36. Liu X, Qiu H, Lee RK, Chen W, Li J. Methylamidation for sialoglycomics by MALDI-MS: a facile derivatization strategy for both alpha2,3- and alpha2,6-linked sialic acids. Anal Chem. 2010;82:8300–6.

    Article  CAS  PubMed  Google Scholar

  37. Zhang Z, Wuhrer M, Holst S. Serum sialylation changes in cancer. Glycoconj J. 2018;35:139–60.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  38. Sebzda T, Saleh Y, Gburek J, Warwas M, Andrzejak R, Siewinski M, Rudnicki J. Total and lipid-bound plasma sialic acid as diagnostic markers in colorectal cancer patients: correlation with cathepsin B expression in progression to Dukes stage. J Exp Ther Oncol. 2006;5:223–9.

    CAS  PubMed  Google Scholar

  39. Park DD, Phoomak C, Xu G, Olney LP, Tran KA, Park SS, Haigh NE, Luxardi G, Lert-Itthiporn W, Shimoda M, et al. Metastasis of cholangiocarcinoma is promoted by extended high-mannose glycans. Proc Natl Acad Sci USA. 2020;117:7633–44.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  40. Zhang X, Wang Y, Qian Y, Wu X, Zhang Z, Liu X, Zhao R, Zhou L, Ruan Y, Xu J, et al. Discovery of specific metastasis-related N-glycan alterations in epithelial ovarian cancer based on quantitative glycomics. PLoS ONE. 2014;9:e87978.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  41. Zivanovic O, Jacks LM, Iasonos A, Leitao MM Jr, Soslow RA, Veras E, Chi DS, Abu-Rustum NR, Barakat RR, Brennan MF, et al. A nomogram to predict postresection 5-year overall survival for patients with uterine leiomyosarcoma. Cancer. 2012;118:660–9.

    Article  PubMed  Google Scholar

  42. Hao L, Pan J, Wang D, Bi YW, Ji JT, Xin L, Liao Z, Du TT, Lin JH, Zhang D, et al. Risk factors and nomogram for pancreatic pseudocysts in chronic pancreatitis: a cohort of 1998 patients. J Gastroenterol Hepatol. 2017;32:1403–11.

    Article  PubMed  Google Scholar
